Brushless Small and Medium Torque Screwdrivers
BSD-B2000 / BSD-BI2000
BSD-B2000 / BSD-BI2000 brushless DC screwdrivers: model-specific torque, speed, voltage, compatible controllers and original catalogue. Request a quotation from KILEWS Thailand.
Brushless Small and Medium Torque Screwdrivers
BSD-B7000L / BSD-B7000P
Brushless DC 32V electric screwdrivers. BSD-B7030L/P models provide 0.98–2.94 N.m at 1200 rpm; BSD-B7022LF/PF models provide 0.49–2.16 N.m at 2000 rpm. L and P designate different starting styles, with high-speed LF/PF variants shown separately.
Technical documents3 filesPrice and lead time are confirmed by model, quantity and project requirements.
Local selection supportAccessory & controller matchingManufacturer documents
PRODUCT INFORMATION
Features & technical specifications
- BSD-B7000L / BSD-B7000P
- Torque accuracy ±3%; stepless adjustment.
- BSP-B32HL / BSP-B32HL-4P-C
- KC-2
- KH-2L
Brushless DC 32V electric screwdrivers. BSD-B7030L/P models provide 0.98–2.94 N.m at 1200 rpm; BSD-B7022LF/PF models provide 0.49–2.16 N.m at 2000 rpm. L and P designate different starting styles, with high-speed LF/PF variants shown separately.
Technical specifications
| Model | BSD-B7030L | BSD-B7030P | BSD-B7022LF | BSD-B7022PF |
|---|---|---|---|---|
| Torque (N.m) | 0.98–2.94 | 0.98–2.94 | 0.49–2.16 | 0.49–2.16 |
| Torque (kgf.cm) | 10–30 | 10–30 | 5–22 | 5–22 |
| No-load speed (rpm) | 1200 | 1200 | 2000 | 2000 |
| Weight (g) | 790 | 790 | 780 | 780 |
| Input voltage / no-load power | DC 32V / 55W | |||
| Accuracy / adjustment | ±3% / Stepless | |||
| Machine / tapping screw diameter (mm) | 2.6–4.0 / 2.6–3.5 | |||
| Length | L290mm | |||
Controllers and accessories
Power controller: BSP-B32HL / BSP-B32HL-4P-C (the 4P-C version is used with a signal box). Torque locking collar: KC-2. Screwdriver holder: KH-2L.
Controller specification: 220V AC 50Hz input; 24/32V DC output; 60W; 200 × 80 × 66mm; 460g.

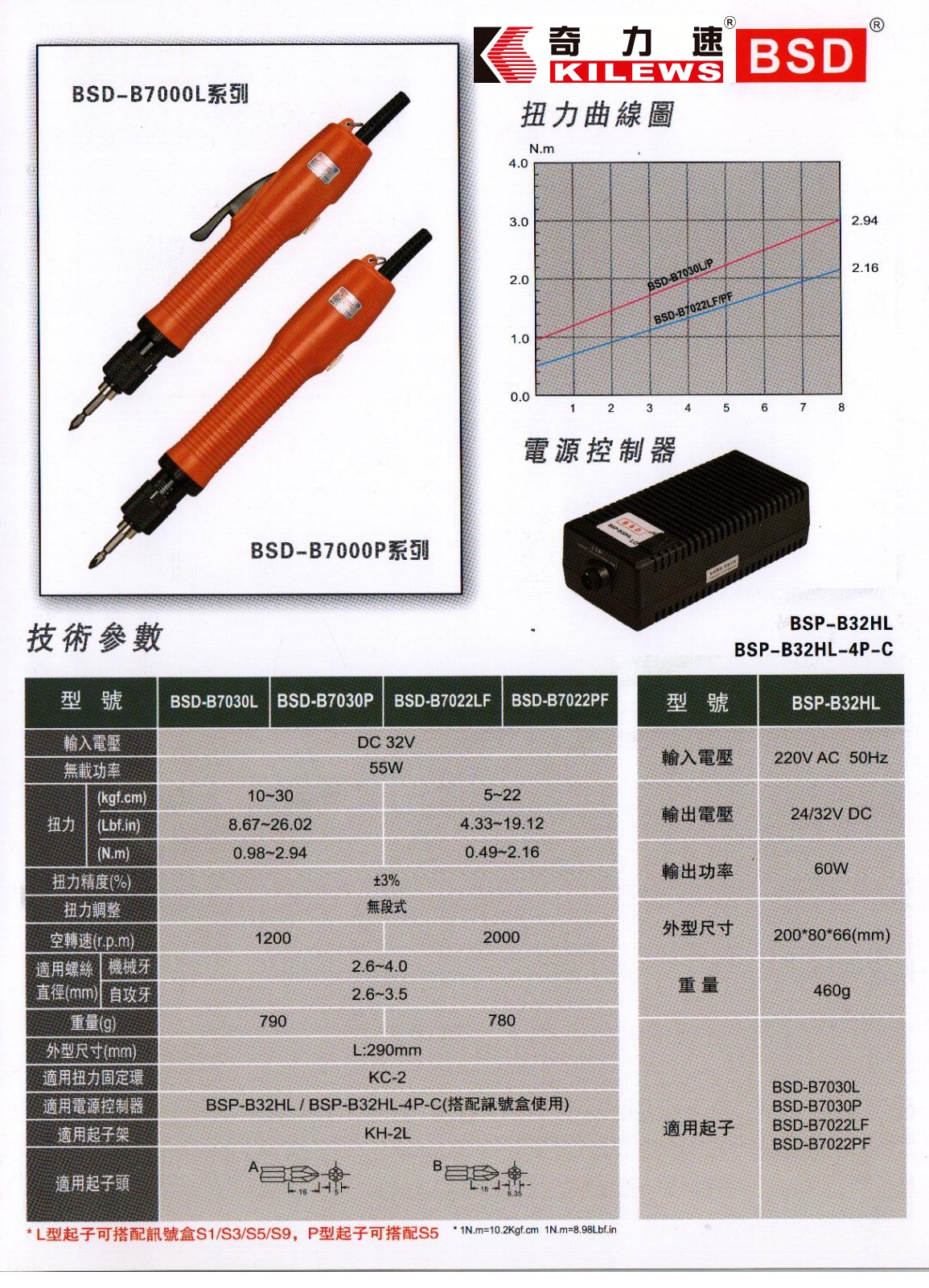

Original catalogue and torque curves
Questions before ordering
Which model should I request?
Use the complete model suffix and the torque range in its table column. Specifications follow the original catalogue image below. Verify the exact L/P/LF/PF suffix and controller configuration. Do not substitute SKD-series specifications.
Which power controller is listed?
Power controller: BSP-B32HL / BSP-B32HL-4P-C (the 4P-C version is used with a signal box). Torque locking collar: KC-2. Screwdriver holder: KH-2L.
How do I request a quotation?
Use Add to inquiry on this page and provide the exact model, quantity and application. Sales will confirm the controller, availability, price and delivery before the order.
