Brushless Small and Medium Torque Screwdrivers
BSD-B2000 / BSD-BI2000
BSD-B2000 / BSD-BI2000 brushless DC screwdrivers: model-specific torque, speed, voltage, compatible controllers and original catalogue. Request a quotation from KILEWS Thailand.
Brushless Small and Medium Torque Screwdrivers
BSD-B2000 / BSD-BI2000
Brushless DC electric screwdrivers for low-torque assembly. The three catalogue model pairs cover 0.03–0.98 N.m, with DC 24V or 32V input and HI 1000 / LO 700 rpm. The BSD-BI variants retain the catalogue model names; confirm the exact model and supply configuration before ordering.
Technical documents3 filesPrice and lead time are confirmed by model, quantity and project requirements.
Local selection supportAccessory & controller matchingManufacturer documents
PRODUCT INFORMATION
Features & technical specifications
- BSD-B2000 / BSD-BI2000
- Torque accuracy ±3%; stepless adjustment.
- BSP-32D-40W / BSP-32D-40W-4P-C
- KC-13C / KC-13S
- KH-5
Brushless DC electric screwdrivers for low-torque assembly. The three catalogue model pairs cover 0.03–0.98 N.m, with DC 24V or 32V input and HI 1000 / LO 700 rpm. The BSD-BI variants retain the catalogue model names; confirm the exact model and supply configuration before ordering.
Technical specifications
| Model | BSD-B2003L / BSD-BI2003L | BSD-B2007L / BSD-BI2007L | BSD-B2010L / BSD-BI2010L |
|---|---|---|---|
| Torque (N.m) | 0.03–0.34 | 0.06–0.69 | 0.10–0.98 |
| Torque (kgf.cm) | 0.3–3.5 | 0.6–7 | 1–10 |
| Machine screw diameter (mm) | 1.0–2.3 | 1.4–2.6 | 1.6–3.0 |
| Tapping screw diameter (mm) | 1.0–2.0 | 1.4–2.3 | 1.6–2.6 |
| Input voltage | DC 24V or 32V | ||
| No-load power | 25W | ||
| Torque accuracy / adjustment | ±3% / Stepless | ||
| No-load speed (rpm) | HI 1000 / LO 700 | ||
| Weight / dimensions | 385g / L185 × D30.3mm | ||
Controllers and accessories
Power controller: BSP-32D-40W / BSP-32D-40W-4P-C (the 4P-C version is used with a signal box). Torque locking collars: KC-13C / KC-13S. Screwdriver holder: KH-5.
Controller specification: 220V AC 50Hz input; 24/32V DC output; 40W; 137 × 60 × 31mm; 190g.

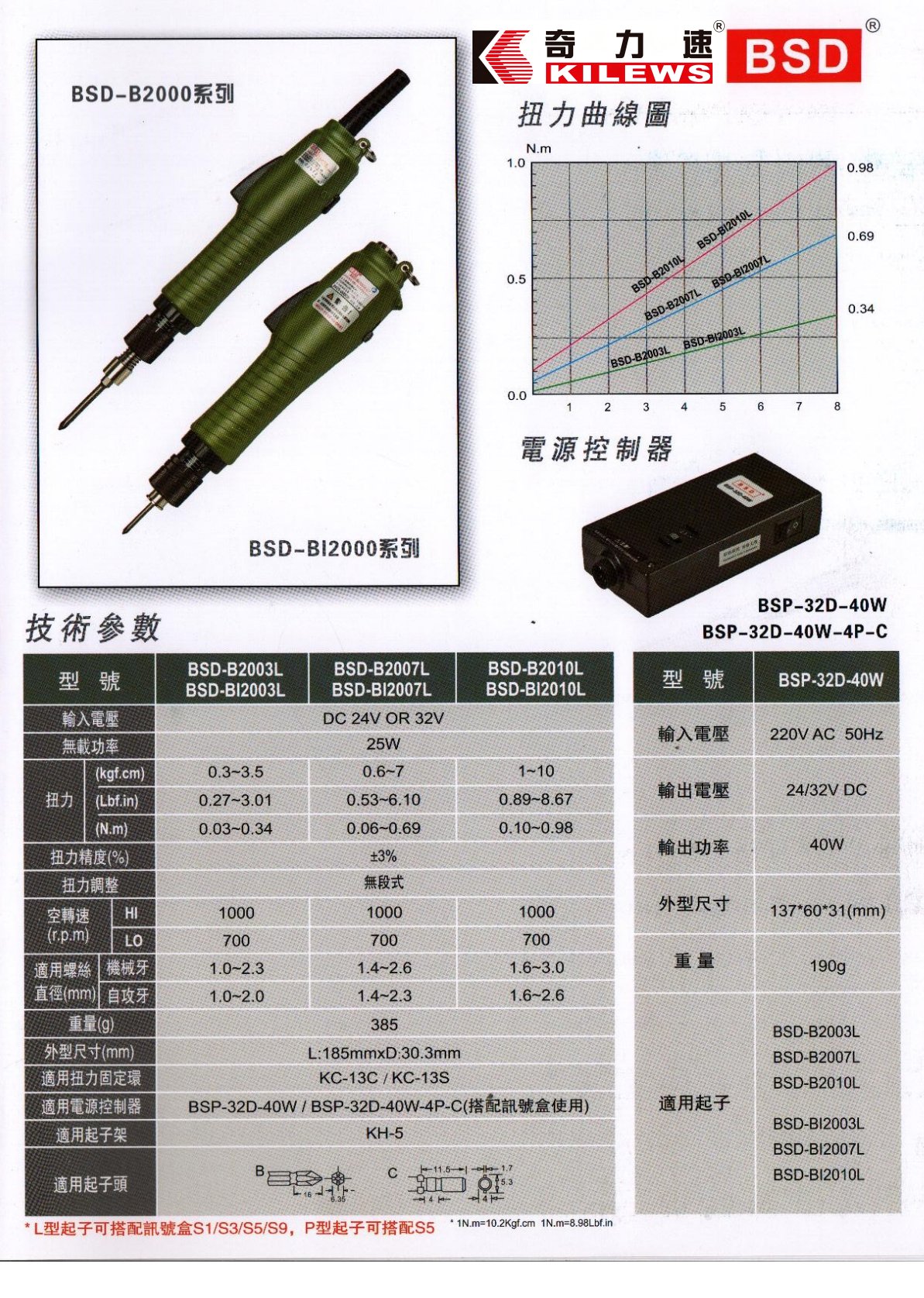

Original catalogue and torque curves
Questions before ordering
Which model should I request?
Use the complete model suffix and the torque range in its table column. Specifications and BI variants follow the original catalogue image below. Verify the manual for the exact model and generation; do not substitute SKD-series specifications.
Which power controller is listed?
Power controller: BSP-32D-40W / BSP-32D-40W-4P-C (the 4P-C version is used with a signal box). Torque locking collars: KC-13C / KC-13S. Screwdriver holder: KH-5.
How do I request a quotation?
Use Add to inquiry on this page and provide the exact model, quantity and application. Sales will confirm the controller, availability, price and delivery before the order.
