Brushless Small and Medium Torque Screwdrivers

BSD-B5000 / BSD-BI5000

Brushless DC electric screwdrivers with L/P and high-speed LF/PF variants. Model-specific torque ranges are 0.15–1.86 N.m. L/P models use DC 24V or 32V at HI 1000 / LO 700 rpm; LF/PF models use DC 32V at 2000 rpm. Check each table column rather than applying one specification to the whole series.

Call us

Technical documents4 files

Price and lead time are confirmed by model, quantity and project requirements.

Local selection supportAccessory & controller matchingManufacturer documents

PRODUCT INFORMATION

Features & technical specifications

BSD-B5000 / BSD-BI5000
Torque accuracy ±3%; stepless adjustment.
BSP-32D-60W / BSP-32D-60W-4P-C
KC-6C / KC-6S
KH-4（KC & KH-2）

Can SKD-BE/SKD-BN controller data be substituted for BSD-B5012L/P?

For BSD-B5012L, the catalogue range is 0.15–1.18 N.m; for BSD-B5012P it is 0.20–1.18 N.m. This BSD catalogue lists BSP-32D-60W / BSP-32D-60W-4P-C (4P-C with a signal box). A similar model number in the SKD-BE or SKD-BN range does not establish controller compatibility. Do not substitute an SKP-32BC-60W listing from another series; sales must confirm the exact supplied BSD configuration.

Quotation, stock confirmation, PO delivery estimate and inquiry checklist

Technical specifications

BSD / BSD-BI model	BSD-B5012L / BSD-BI5012L	BSD-B5019L / BSD-BI5019L	BSD-B5012LF / BSD-BI5012LF	BSD-B5012P / BSD-BI5012P	BSD-B5019P / BSD-BI5019P	BSD-B5012PF / BSD-BI5012PF
Torque (N.m)	0.15–1.18	0.29–1.86	0.15–1.18	0.20–1.18	0.29–1.86	0.20–1.18
Torque (kgf.cm)	1.5–12	3–19	1.5–12	2–12	3–19	2–12
DC voltage (V)	24V / 32V	24V / 32V	32V	24V / 32V	24V / 32V	32V
No-load speed (rpm)	HI 1000 / LO 700	HI 1000 / LO 700	2000	HI 1000 / LO 700	HI 1000 / LO 700	2000
Machine screw diameter (mm)	1.6–3.0	2.3–3.5	1.6–2.3	1.6–3.0	2.3–3.5	1.6–2.3
Tapping screw diameter (mm)	1.6–2.6	2.3–3.0	1.6–2.6	1.6–2.6	2.3–3.0	1.6–2.6
No-load power	55W
Accuracy / adjustment	±3% / Stepless
Weight / dimensions	520g / L245 × D33.8mm

Controllers and accessories

Power controller: BSP-32D-60W / BSP-32D-60W-4P-C (the 4P-C version is used with a signal box). Torque locking collars: KC-6C / KC-6S. Screwdriver holder: KH-4 (KC & KH-2).

Controller specification: 220V AC 50Hz input; 24/32V DC output; 60W; 145 × 60 × 35mm; 250g.

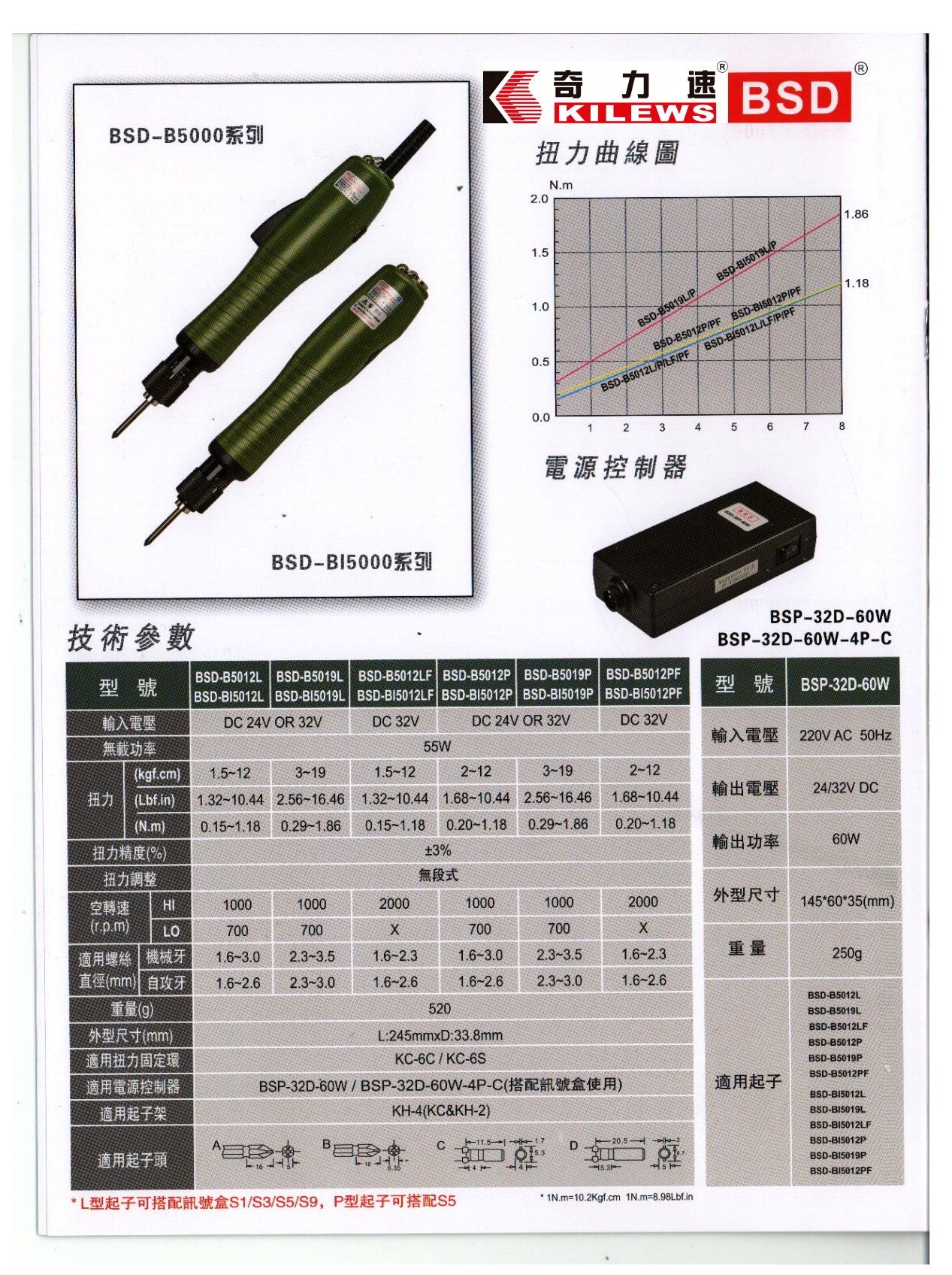

Original catalogue and torque curves

Questions before ordering

Which model should I request?

Use the complete model suffix and the torque range in its table column. The table and BI variants follow the supplied original catalogue. The official manual library also contains other suffix models, including BSD-B5017LF/PF. They are not interchangeable with the catalogue models on this page.

Which power controller is listed?

Power controller: BSP-32D-60W / BSP-32D-60W-4P-C (the 4P-C version is used with a signal box). Torque locking collars: KC-6C / KC-6S. Screwdriver holder: KH-4 (KC & KH-2).

How do I request a quotation?

Use Add to inquiry on this page and provide the exact model, quantity and application. Sales will confirm the controller, availability, price and delivery before the order.

DOCUMENTS

Product documents

PDF

BSD-B5012L / B5019L / B5012LF / B5012P / B5019P / B5012PF · Operating manual

Simplified Chinese · 1.61 MB
BSD-B5019LP2.pdf

PDF

BSD-B5012L / B5019L / B5012LF / B5017LF / B5012P / B5019P / B5012PF / B5017PF · Operating manual

Simplified Chinese · 2.40 MB
BSD-B5019LP.pdf

PDF

BSD-B5019LF / B5019PF · Operating manual

Simplified Chinese · 1.19 MB
BSD-B5019LFPF.pdf
